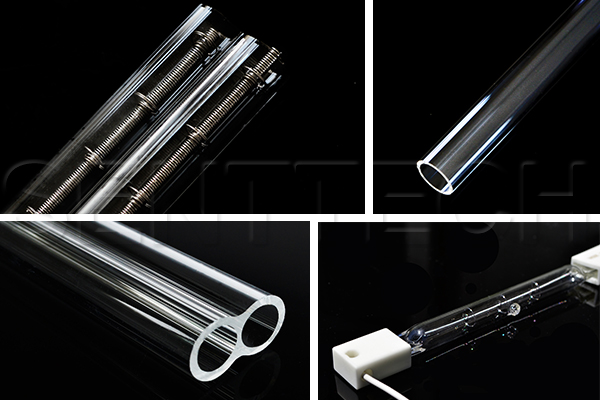

SENTTECH Short Wave Infrared Heating Lamp

● Diameter: Twin tube lamp --- 23*11mm, 33*16mm
                      Single tube lamp --- φ10mm

 Quartz Tube: 99.99% high purity quartz glass
 Filament: Tungsten filament and filled with protective gas
 Filament Temperature: 1800 - 2400℃
 Ceramic base: Heat-resistant and non-deformable
 Wavelength: 0.76-1.7μm
 Maximum Power: 110w/cm
 Voltage: 110V/ 230V/ 380V/ 400V/ 550V available
 Maximum overall length: 6,000mm for twin-tube lamp
                                              1,300mm for single-tube lamp

 Average lifespan: 5,000 hours guaranteed
● Response time: 1-2 seconds
 Wire Connection: one-side and two-side connection available
 Reflector: Golden coating & ceramic coating to increase reflectivity

Senttech manufactures a complete range of short wave emitters from 70mm to
6000mm in length up to 41,300 watts. Please contact us for more info. for your
own infrared heating lamp.
